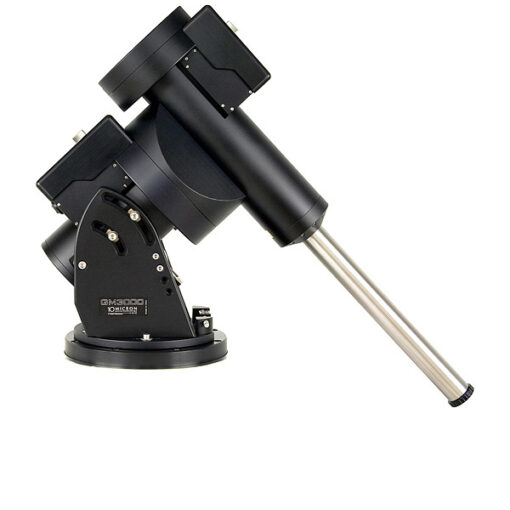

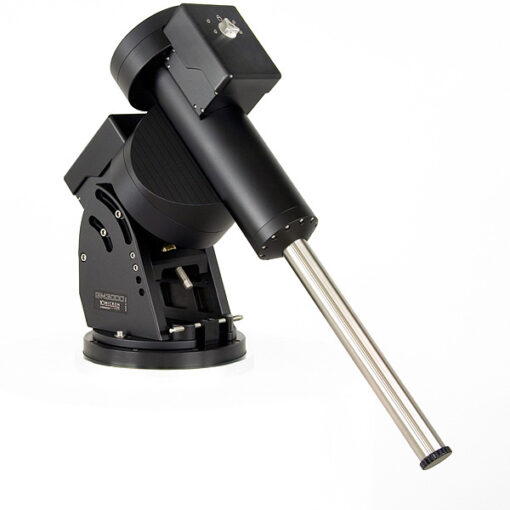

เมาท์ตามดาว อิเควตอเรียลระบบอัตโนมัติ 10MICRON GM3000 HPS

The keypad is built in order to maintain the maximum readability in all lighting conditions. Both the display and the ergonomic keys, allowing for the use of gloves, feature a red backlight. An heater keeps the display warm for usage below freezing temperatures. The mount can be controlled using the most common software packages by connecting it to a PC with the RS-232 serial port or the Ethernet connection, via the 10micron ASCOM driver or the Meade compatible command protocol. Furthermore, a dedicated software (also included with the mount) can be used to create a “virtual keypad” replicating exactly the functions of the physical keypad. The RS-232 port can also be used to control an external dome. This flexibility makes the GM3000HPS an ideal mount for observatories and remotized observing sites. The object database contains many star catalogs and deep-sky objects up to the 16th magnitude. Solar system objects can be tracked so that their motion is compensated with respect to the stars. You may load orbital elements of comets, asteroids and artificial satellites into the mount, so that these objects can be tracked directly.

Pointing is made accurate through the usage of a model containing up to 100 stars, which allows for the correction of the classical polar alignment and conic errors, and also of the most important flexure terms of the optical tube. In this way it is possible to obtain pointing accuracies of the order of 15 arcseconds RMS. The same model can be used in order to obtain the maximum tracking accuracy, compensating also for the atmospheric refraction (depending on the local atmospheric pressure and temperature).
A series of auxiliary functions is provided to help the user for quick aligning the mount to the celestial pole. You may also save and recover the alignment data of different observing sessions. This function is very useful if you have many instruments in different setups, each one requiring different flexure corrections. Tracking through the meridian, a typical problem with german mounts, is solved allowing for tracking for up to 30° past the meridian (configurable), in both directions. In this way any object can be tracked for at least four hours.
The tracking accuracy makes autoguiding not necessary for many uses.

The absolute encoders on both axes allows to obtain a typical tracking error below 1 arcsecond. It is possible to autoguide anyway, using the ST4-compatible port or through the serial/Ethernet connection, with a guide rate configurable from 0.1x to 1x. The guide rate can be automatically corrected for the declination of the target, so that there is no need of recalibrating the autoguide when observing at different declinations. The mount has also dedicated function for easy use in the observatory. A dedicated connector on the control box panel is used for remotized switching on and off. The instrument can be electronically balanced, without disengaging the worm from the wormwheel. The mount can be parked in different user-defined positions. The serial RS-232 port can be used to control directly an external dome, avoiding the need of using a dedicated external PC. Once configured with your instrument parameters, the firmware is able to make all the calculations required for positioning the dome slit in front of your optical tube, for almost all instrument configurations.

The GM3000 HPS can be supplied also in a special version for very low temperature operations (item # 10M3000F)

More about HPS Technology
