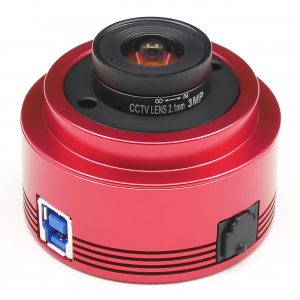

กล้องถ่ายภาพดาราศาสตร์ 12 Bit ZWO ASI290MC (color)

Sensor
1/2.8″ CMOS IMX290/IMX291

Resolution
2.1Mega Pixels 1936×1096

Pixel Size

2.9µm

Exposure Range

32µs-2000s

ROI

Supported

ST4 Guider Port

Yes

Focus Distance to Sensor

12.5mm

Shutter Type

Rolling Shutter

Protect window

AR coated window

Operating System Compatibility

Mac, Windows, Linux

Interface

USB3.0/USB2.0

Bit rate

12bit output(12bit ADC)

Adaptor

2″ / 1.25″ / M42X0.75

Dimension

φ62mm X 36mm

Weight

120g or 4.2 ounces (without lens)

Working Temperature

-5°C—45°C

Storage Temperature

-20°C—60°C

Working Relative Humidity

20%—80%

Storage Relative Humidity

20%—95%
Supported resolution
USB2.0 MAX FPS
1936×1096: 20.4
1280×960: 35.3
640×480: 141.5
320×240: 355.9
2X2Bin :968×548: 20.4
USB3.0 MAX FPS(12bit/10bit)
1936×1096: 82.2/170
1280×960: 93.6/193.9
640×480: 184/381.2
320×240: 355.9/737.5
2X2Bin :968×548: 82.2/170
